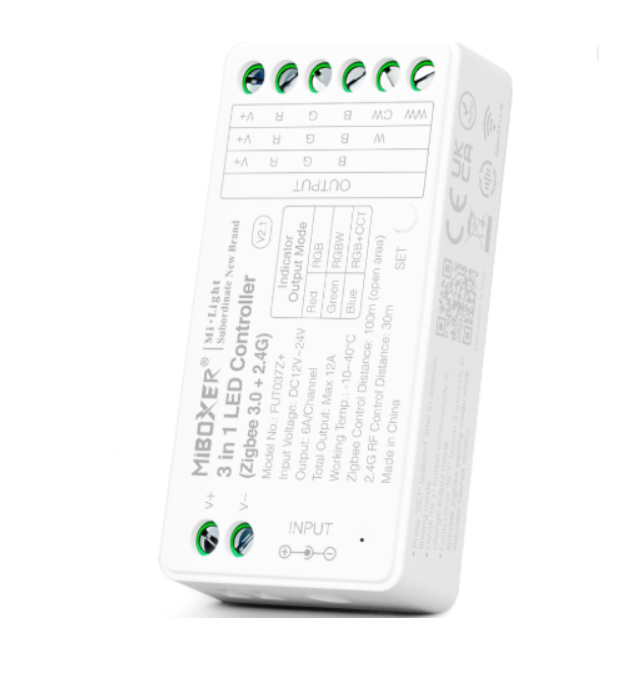

FUT037Z+ 3 in 1 LED Controller (Zigbee 3.0 +2.4G)
• Product follow zigbee 3.0 standard protocol • Zigbee Contrl distance: 100m (open area) • Compatible with Mi-Light / MiBoxer 2.4GHz series remote • 2.4G RF Remote Control Distance: 30m • Brightness and color temperature adjustable • Switching 3 output mode via one button (RGB / RGBW / RGB+CCT)
Features
- Product Parameters
- Product Name 3 in 1 LED Controller (Zigbee 3.0 +2.4G)
- Model No. FUT037Z+
- Input Voltage DC12~24V
- Output 6A/Channel
- Total Output Max 12A
- Communication Protocol Zigbee 3.0 + 2.4GHz
- Control Distance Zigbee: 100m (open area)
- 2.4G RF: 30m
- IP Rate –
- Working Temperature -10~40°C
- Wireless Technology Zigbee 802.15.4
- Wireless Frequency 2.400-2.480GHz
