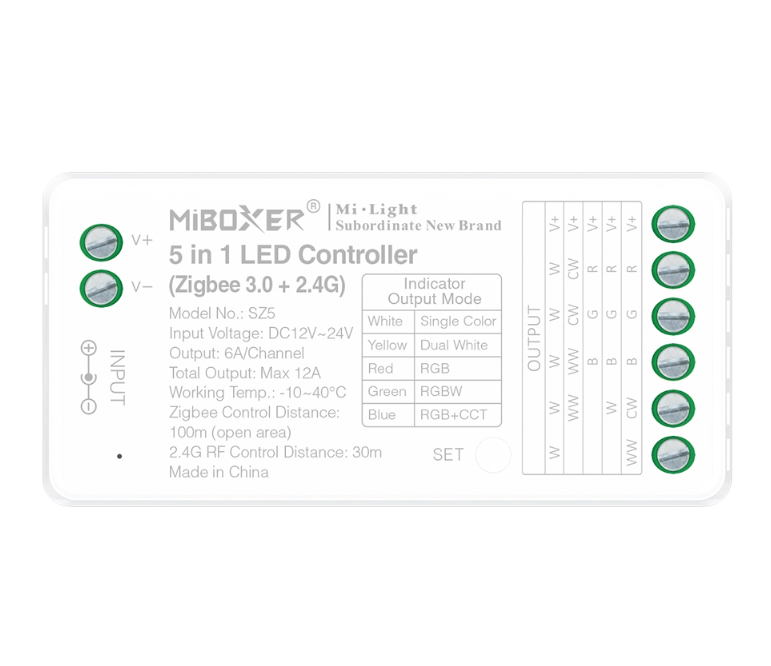

SZ5 5 in 1 LED Controller (Zigbee 3.0+ 2.4G)
• Zigbee 3.0 standard protocol • Support “Tuya Smart” app control, Support music rhythm • Support third party voice control (Alexa, Google Assistant) • 2.4G RF Remote controllable • Switching 5 output mode via one button (Single color / Dual white/ RGB/ RGBW/ RGB+CCT)
Features
- Features
- SZ5 5 in 1 controller, Zigbee 3.0 standard wireless transmission technology with lower power consumption, mesh network with strong ability for anti-interference.
- It supports individual or multi zones control, wide application for home or commercial lighting.
- Paired with MiBoxer Zigbee 3.0 gateway to have function like wireless dimming, remote control, timmer, group control, music rhythm.
- It can work with 2.4G RF remote.
- Zigbee 3.0 standard protocol
- RGB and Brightness and color temperature adjustable
- Built-in 18 dynamic mode with jumping, gradually changing( only for 2.4G remote control)
- Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite
- Automatic synchronization: The same dynamic mode is automatically synchronized, so that the mode is always consistent
- Have DND function, usually used in power failure area and save power
- Support TUYA SMART app control (Zigbee 3.0 gateway is needed)
- Support third party voice control like Alexa, Google assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi (Zigbee 3.0 gateway is needed)
- Support DMX512 control (requires DMX512 LED transmitter)
- Parameters
- Product Name: SZ5 5 in 1 Controller
- Model No.: SZ5
- Input Voltage: DC12-24V
- Output Current: 6A/ Single channel
- Total Output： Max 12A
- Control Signal: Zigbee 3.0 + 2.4GHz RF
- Control Distance: Zigbee： 100M（Open area）/ 2.4G RF ： 30M
- IP Rate: IP20
- Dimming Curve: Logarithmic
- EMC Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11)
- ETSI EN 301 489-3 v 2.3.2 (2023-01)
- Safety Standard (LVD): EN 61347-1：2015+A1: 2021
- EN 61347-2-11: 2001+A1:2019
- Radio Equipment (RED): ETSI EN 300 440 V2.2.1
- Certification: CE, EMC, RED
🎬 Product Video
Related Products
E3-ZR LED Controller (Zigbee 3.0 +2.4G)
Product Name 3 in 1 LED Controller (Zigbee 3.0 +2.4G) Model No. E3-ZR Input Voltage DC12~24V Output 6A/Channel Total Output Max 12A Communication Protocol Zigbee 3.0 + 2.4GHz Control Distance Zigbee: 100m (open area) 2.4G RF: 30m IP Rate – Working Temperature -10~40°C Wireless Technology Zigbee 802.15.4 Wireless Frequency 2.400-2.480GHz
E2-WR 2 in 1 LED Strip Controller (WiFi+2.4G)
Product Name 2 in 1 LED Strip Controller (WiFi+2.4G) Model No. E2-WR Input Voltage DC12~24V Output 12A/Channel Total Output Max 12A Communication Protocol WiFi+2.4GHz 2.4G RF Control Distance 30m IP Rate – Working Temperature -10~40°C WiFi Standard IEEE 802.11b/g/n 2.4GHz Bluetooth Protocol Bluetooth 4.2 (low power consumption)

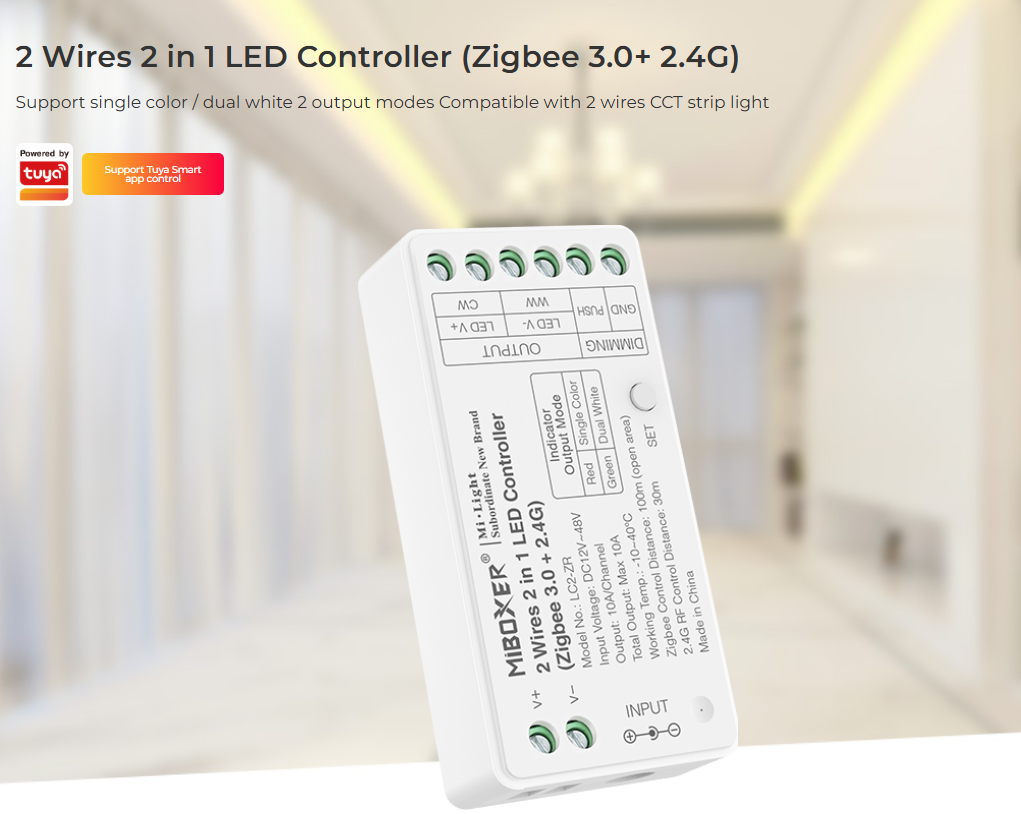

LC2-ZR 2 Wires 2 in 1 LED Controller (Zigbee 3.0+ 2.4G)
