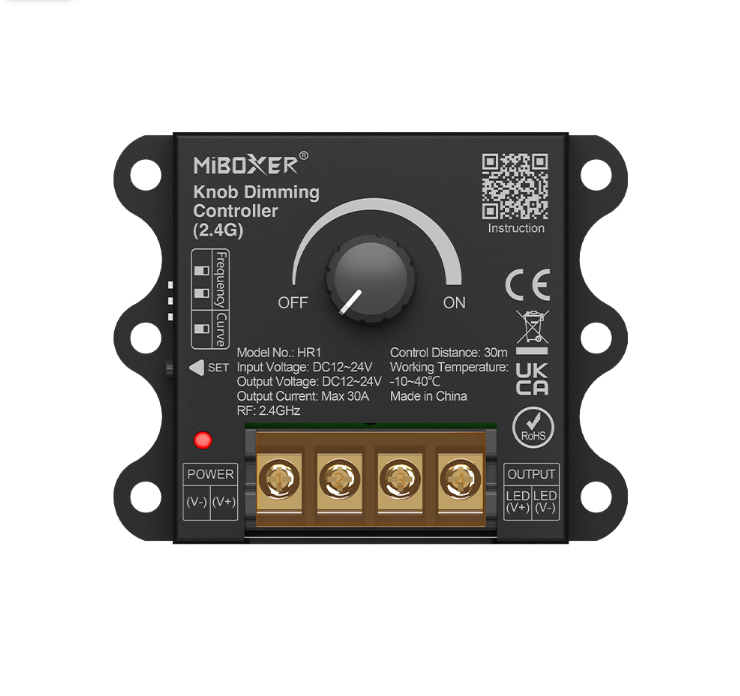

HR1 30A Knob Dimming Controller(2.4G)

• 2.4G RF wireless technology • Switchable DIP switch for adjusting PWM frequency and dimming curve • Remote control distance: 30m

Features

• The single-color 30A knob dimming controller adopts the widely used 2.4GHz wireless technology, featuring low power consumption, long signal transmission distance, and strong anti-interference capability. It supports wireless remote control for convenient operation.
• 2.4G RF wireless technology
• Switchable DIP switch for adjusting PWM frequency and dimming curve
• Remote control distance: 30m
• Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite
• Have DND function, usually used in power failure area and save power
• Support TUYA SMART app control (2.4GHz gateway is needed)
• Support third party voice control like Alexa, Google assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi (2.4GHz gateway is needed)
• Parameters
• Product Name: 30A Knob Dimming Controller(2.4G)
• Model No.: HR1
• Input Voltage: DC12-24V
• Output Voltage: DC12~24V
• Output Current: Max 30A
• Control Distance: 30M
• RF： 2.4GHz
• Working Temperature: -10~40℃
• EMC Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01)
• Safety Standard (LVD): EN 61347-1：2015+A1: 2021 EN 61347-2-11: 2001+A1:2019
• Radio Equipment (RED): ETSI EN 300 440 V2.2.1
• Certification: CE, EMC, RED
