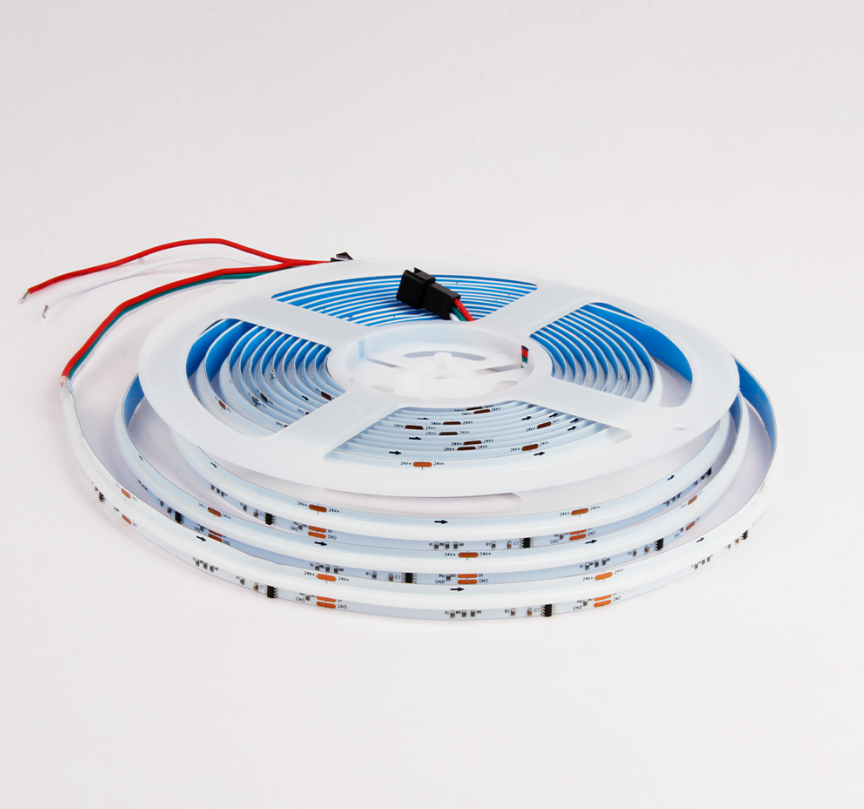

SPI4N01C COB RGBW SPI Strip light (6500K)
• Safety voltage DC24V • Soft FPCB material, the strip can be cut off or fold freely • Portable installation, remove back glue sticker and stick anywhere directly • Best ability for heat dissipation and low luminous decay
Features
- The led strip is built-in WS2814 chip, 14 pixel points per meter
- •Compatible with Miboxer SPI controller series
- •Dim dynamic lighting via SPI controller and remote
- •Soft FPCB material, the strip can be cut off or fold freely
- •Portable installation, remove back glue sticker and stick anywhere directly
📋 Product Details
Parameters
| Product Name: | COB RGBW SPI Strip |
|---|---|
| Model No.: | SPI4N01C |
| Input Voltage: | DC24V |
| Power/M: | R, G, B, W: 7W/m, 28W/5m |
| Luminous Flux： | W: 370LM/m, 1600LM/5m |
| Chip: | WS2814 |
| LED Chip QTY: | 784/M |
| CRI: | 90 |
| Beam Angle: | 120° |
| Pixel points: | 14 Pcs/m, 70 Pcs/5m |
| Board Thickness: | 2.5oz（Front 1 oz, Back 1.5 oz） |
|---|---|
| Width: | 10mm |
| Tailor Length: | 71.42mm |
| IP: | IP20 |
| Working Temperature: | -10~40℃ |
| Size: | 10x3x5000mm |
| Packing: | 5M/R |
| Warranty: | 2 Year |
 Recommended Matching   |
Related Products
FUTC02ZR 9W RGB+CCT LED Garden Light (Zigbee 3.0 + 2.4G)
Product Name 9W RGB+CCT LED Garden Light (Zigbee 3.0 + 2.4G) Model No. FUTC02ZR Input Voltage 100-240V~ 50/60Hz Power 9W PF >0.5 CRI >80 Color Temperature 2700K~6500K Luminous Flux 900LM Luminous Efficiency 100LM/W Beam Angle 15° Communication Protocol Zigbee 3.0 + 2.4GHz Control Distance Zigbee: 50m (open area) 2.4G RF Remote: 30m IP Rate IP66 Working Temperature -20~45°C Wireless Technology Zigbee 802.15.4 Wireless Frequency 2.400-2.480GHz Illumination Distance >10m
FUTC11ZR 12W RGB+CCT LED Garden Light (Zigbee 3.0 + 2.4G)
Product Name 12W RGB+CCT LED Garden Light (Zigbee 3.0 + 2.4G) Model No. FUTC11ZR Input Voltage AC100~240V 50/60Hz Power 12W PF >0.5 CRI >80 Color Temperature 2700K~6500K Luminous Flux 1100LM Luminous Efficiency 90LM/W Beam Angle 60° Communication Protocol Zigbee 3.0 + 2.4GHz Control Distance Zigbee: 50m (open area) 2.4G RF Remote: 30m IP Rate IP66 Working Temperature -20~45°C Wireless Technology Zigbee 802.15.4 Wireless Frequency 2.400-2.480GHz Illumination Distance >10m

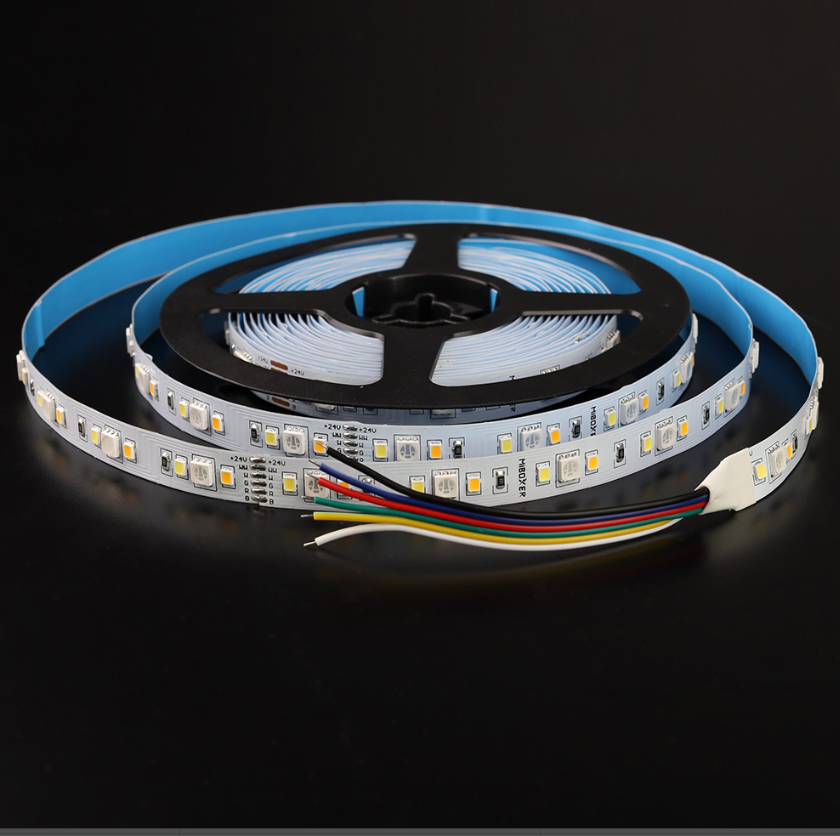

5050+2835 RGB+CCT LED Strip Light
